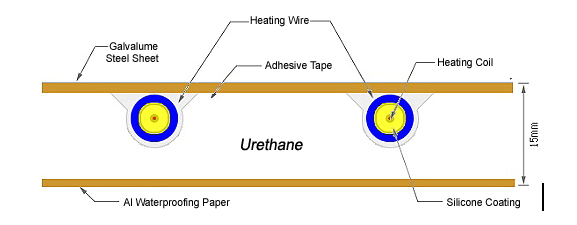

A traditional, common heating method using galvalume steel sheet attached with Ni heating wire, coated with urethane foam, installed with safety devices such as bimetals for control.
This system is suitable for heating limited areas or time band, such as restaurants. No boiler is required. The system can be easily moved to different site.

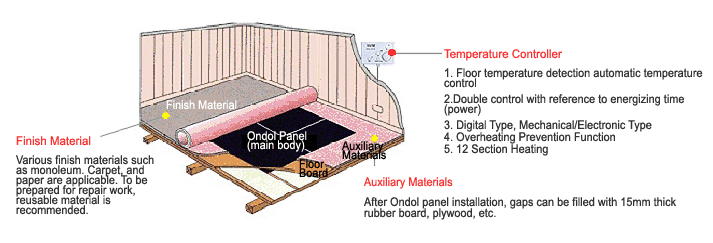

Due to easier installation, DIY construction is becoming popular. Its demerits including EMI, floor sinking or bouncing can be solved by improved construction method. |
|
|
|
| |
 |
| |
|
| |
|
| |
 |
| |
|
| |
 |
| |
| |

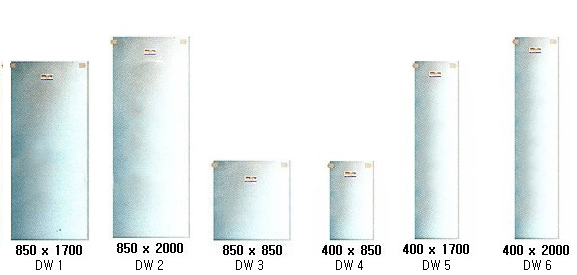

Model No. |
Dimensions |
Power Consumption |
Model No. |
Dimensions |
Power Consumption |
DW 1 |
850 x 1700 x 15 |
260w
|
DW 4 |
850 x 400 x 15 |
60w
|
DW 2 |
850 x 2000 x 15
|
300w
|
DW 5 |
|
125w |
DW 3 |
850 x 850 x 15
|
125w
|
DW 6 |
|
150w |
|
|
|
| |
|
|
| |
|
|
|
 |
|
| |
|
|
|
