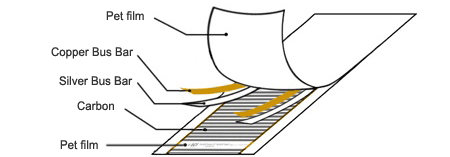

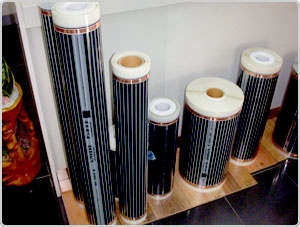

An advanced heating method using PET film printed (gravure) with carbon heating element, formed with copper foil electrodes, and laminated with film. The heating film radiates far infra red rays and negative ions, which realize a wellbeing heating with the radiated heat feel like sunlight.
Film heating is easy for sectional or cetralized heating and control. Heating cost can be reduced by heating for required time and space only. Oneday construction-use is possible by installing the fillm on existing floor without demolishing.

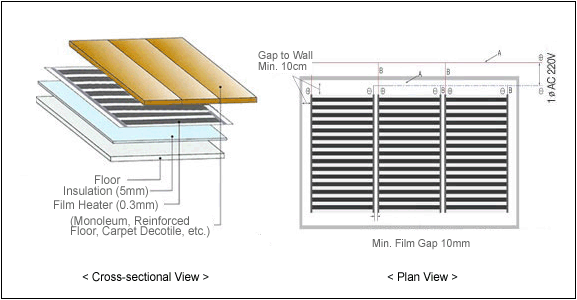

 For stable use, reinforced floor is strongly recommended as the finish material. Consult with the constructor for use in humid place or covering with floor mat.

Daewoo Heating Film Utility Model No. 0408349


Features

1. Flame Retardant PET: the PET film is XB-65 (UL Flame Retardant Certified, milky colored, embedded with VTH-2 insulation chip), Taraysaehan, for safety.

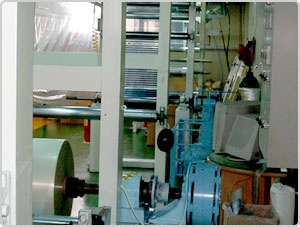

2. Gravure Printing: common screen printing method is not suitable for printing carbon plane heaters due to uneven carbon layer thickness, and may cause fire or leakage current by local heating. Gravure printing guarantees even electric resistance of the printed carbon layer, consequently, enhanced safety.



3. Wide Silver Space: silver acts as a bridge (prevents spark, cold leader for heating cable) that converts electric energy to heat safely, thus, directly related with the life and safety of the product. Daewoo Enertech ensures product safety with expanded silver space.
4. Copper Bus Bar of 12mm width, 타프치노 10 Ampere: wider copper bus bar prevents overheating. Thinner bus bar improves adhesiveness of PET to remove air layer and stabilize product (competitors: 8-10mm)


Specification


Comparable Model

Width

Power Consumption

Heating Value

Packing Unit
DW050-100W220V
50Cm
100wh/m
86 Kcal/h
 150m
DW080-160W220V
80Cm
160wh/m
138 Kcal/h
 100m
DW100-200W220V
100Cm
200wh/m
712 Kcal/h
 100m

We use XB-65 (UL Flame Retardant Certified, milky colored, embedded with VTH-2 insulation chip) PET film from Taraysaehan, not transparent PET tube.
Please contact us for 110V or special use other than heating.

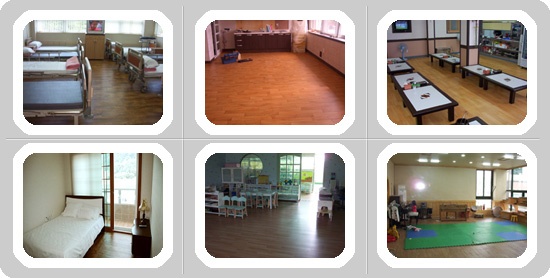

Application : energy saving floor heating




    Economical Heating in the Era of High Oil Price
    -Energy saving by 50% or more compared with oil boilers
    -No maintenance expenses required
    -Sectional or centralized heating, at necessary time and place
    - High heat efficiency without loss




    Wellbeing Heating System
    -One day construction-use possible (no operation shutdown)
    -Safe for health – no new house syndrome or EMI
    - Radiates far infrared rays and negative ions
      (Far IR: 90.3%, Anions: 256/cc – Daewoo Film Test Report)
     - No smoke or noise
    - Pleasant room atmosphere with far infrared ray radiation






     Low Construction Cost
    -No pipeline with boiler room is required
    - Floor height and dead load can be reduced
    - Can be constructed on existing floor without demolishing




    Safe Heating
    -Double, triple safety measures and heating at appropriate       temperature.
    -No oil refill, no worry of freezing.
    -Different from LPG or city gas, no worry of explosion.




  Caution
Because film heating is a dry method, cement mortar finishing (wet) may cause defect.
Use compression protective board when applying tecotile or monoleum.

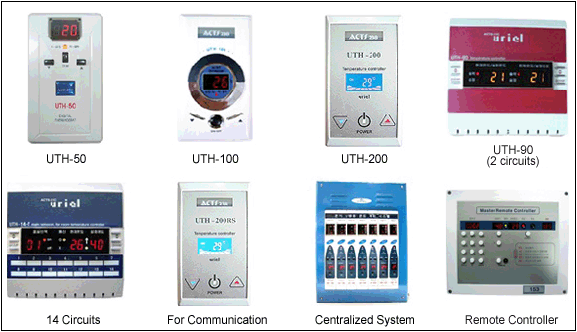

Temperature Controller

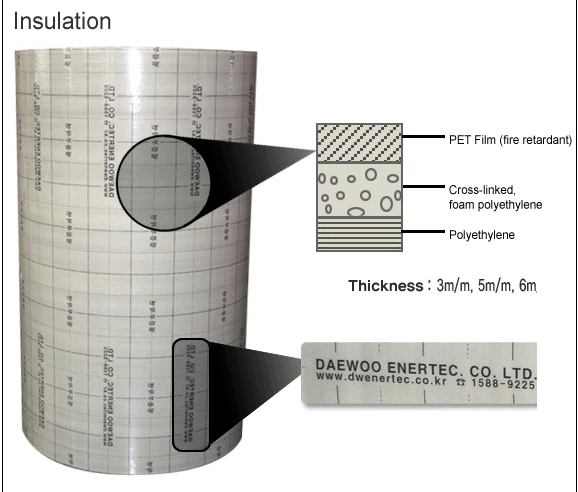

Insulation Exclusively for Film


Using non-conductive PET, Daewoo Enertech’s insulation for film heating system is excellent in heat insulation without current leakage or static electricity.
