A method of main or auxiliary heating with the radiation of heat from electric energy generated in non-magnetic heating cables embedded in the building floor. This method is simple, easy to construct, and provides pleasant room atmosphere. Efficient floor heating effect can be achieved replacing large scale air handling system using oil or gas boiler.

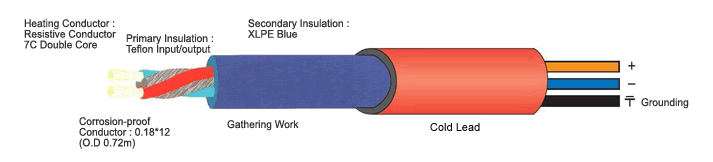

The heating cable, which is the source of heat diameter of approximately 7mm, is a special heating conductor designed to provide appropriate electric resistance per unit length. Its inner cover consists of double layers of special soft PE, and covered with EMC screen to prevent EMI. This is an advanced, wet & dry heating system using the electric energy which is economical, clean and efficient.

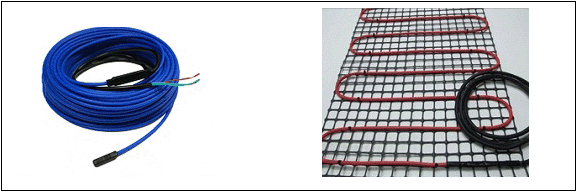

For Indoor Heating



  Please place separate order for the Met Type
  Heating Conductor cannot be cut for divided use


Features and Applications

  Grounded type (first in Korea) – enhanced safety
  Uni-directional power cable connection – non-magnetic, improved workability
  ø7, 25w/m, 6.8m/m2 optimal radiation heating implemented
  Where gas or oil boiler is inconvenient of inefficient
  New hotels, motels, or religious facilities where mid-night discount rate power is insufficient (20kw/h).
  Lobby, lounge (hotel, museum, department store, commercial buildings)
  Schools, office, restaurant, work shop, waiting room, guard house, dormitory, rest room.
  Church, lecture hall, meeting room
  Indoor swimming pool
  Stall, fish farm, greenhouse heating



Specification




Model No

㎡(py)

Max.
Output

Length (m)
DW05 1.62(0.5) 293 w/h 11.5
DW10 3.24(1.0) 572 w/h 22.5
DW15 4.86(1.5) 846 w/h 33.5
DW20 6.48(2.0) 1.137 w/h 45
DW30 7.72(3.0) 1.688 w/h 67
DW40 12.96(4.0) 2.240 w/h 90






For Outdoor Heating


  Please place separate order for the Met Type
  Heating Conductor cannot be cut for divided use


Features and Applications

  Sensors detect humidity, snow and temperature for automatic heater control and energy saving.

  Freezing can be simply detected and snow can be removed to prevent accidents and save labor cost.
  Suitable for removing the snow or preventing ice where equipments or workers cannot approach.

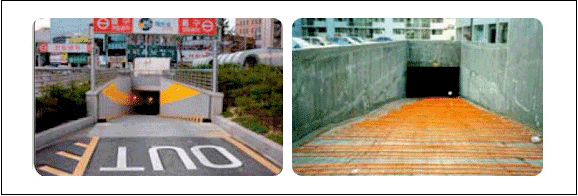

  Approach road to parking area.

  Sloped road, crosswalk, bridge, overpass.
  Entry/exit, stairways of building.

  Prevention of condensation or icicles.
  Area where freezing may occur, such as freezing warehouse.



Specification




Product Name

Model No

 Installed(w)
Output		 Power Consumption
W/㎡		 Mat
Size

Rated Voltage

 Amp

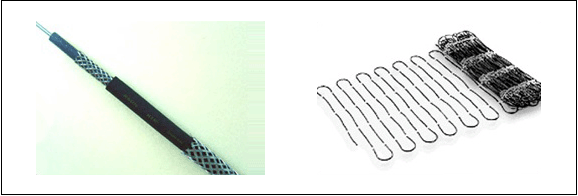

Snow Melting
cable		 DW-SAM25W8M3V 1725 215 1M*8M 380 4.53
DW-SAM25W12M3V 2575 215 1M*12M 380 6.77
DW-SAM25W17M3V 3650 215 1M*17M 380 9.6
DW-SAM32W7M3V 1951 270 1M*7M 380 5.13
DW-SAM32W11M3V 2976 270 1M*11M 380 7.83
DW-SAM32W15M2V 4192 270 1M*15M 380 11

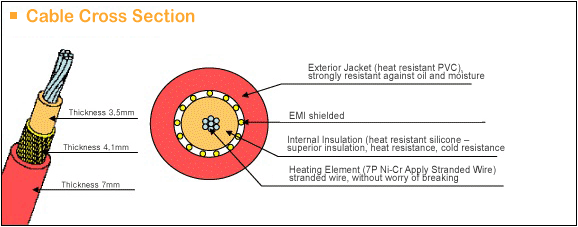

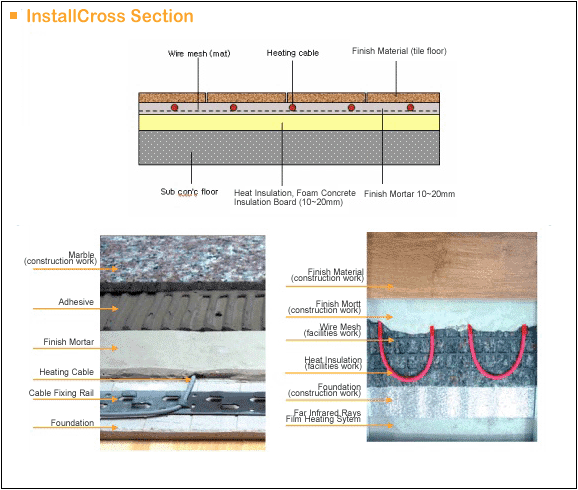

Cross-sectional view
